Scatter plots of Hill diversity across pairs of phyloseq objects

Source: R/gg_hill_lpq.R
gg_hill_lpq.Rd

For each pair of phyloseq objects in a list_phyloseq, computes Hill numbers (richness, Shannon exponential, inverse Simpson) per sample and draws scatter plots comparing the diversity of the same samples across objects. This is a visual diagnostic for REPRODUCIBILITY, ROBUSTNESS, and REPLICABILITY comparisons.

Each point represents one sample. A 1:1 reference line and optional regression line help assess how similar (or different) the diversity estimates are between two pipelines, runs, or primers.

Usage

gg_hill_lpq(
  x,
  hill_scales = c(0, 1, 2),
  pairs = NULL,
  add_1to1 = TRUE,
  add_smooth = TRUE,
  cor_method = "pearson",
  point_color = "black",
  point_alpha = 0.6,
  point_size = 2,
  smooth_color = "steelblue",
  verbose = TRUE
)

Arguments

x

(required) A list_phyloseq object.

hill_scales

(numeric vector, default c(0, 1, 2)) Hill number orders to compute: 0 = richness, 1 = Shannon exponential, 2 = inverse Simpson.

pairs

(list of integer pairs or NULL, default NULL) Which pairs of phyloseq objects to compare. Each element must be a length-2 integer vector of indices. If NULL, all pairwise combinations are used.

add_1to1

(logical, default TRUE) If TRUE, adds a dashed 1:1 identity line to each panel.

add_smooth

(logical, default TRUE) If TRUE, adds a linear regression line with confidence interval via ggplot2::geom_smooth().

cor_method

(character, default "pearson") Correlation method for the annotation label. One of "pearson", "spearman", "kendall".

point_color

(character, default "black") Color for scatter points.

point_alpha

(numeric, default 0.6) Transparency for scatter points.

point_size

(numeric, default 2) Size for scatter points.

smooth_color

(character, default "steelblue") Color for the regression line and confidence ribbon.

verbose

(logical, default TRUE) If TRUE, print a message when common samples are used instead of all samples.

Value

A ggplot2::ggplot() object with panels arranged in a grid: rows = pairs of phyloseq objects, columns = Hill number orders.

Details

lifecycle-experimental

The function works on common samples across all phyloseq objects. When the list_phyloseq has same_samples = TRUE, all samples are used. When samples differ (e.g., NESTED_ROBUSTNESS), only the intersection is kept.

Comparison type context:

REPRODUCIBILITY

High correlation expected for all Hill orders.

ROBUSTNESS

Moderate to high correlation is desirable; deviations indicate pipeline sensitivity.

REPLICABILITY

Correlation may vary across Hill orders depending on primer or technology differences.

See also

estim_cor_pq(), estim_diff_lpq()

Examples

lpq <- list_phyloseq(
  list(run1 = data_fungi, run2 = data_fungi_mini),
  same_bioinfo_pipeline = FALSE
)
#> ℹ Building summary table for 2 phyloseq objects...
#> ℹ Computing comparison characteristics...
#> ℹ Checking sample and taxa overlap...
#> ℹ Detected comparison type: NESTED_ROBUSTNESS
#> ℹ 137 common samples, 45 common taxa
#> ✔ list_phyloseq created (NESTED_ROBUSTNESS)

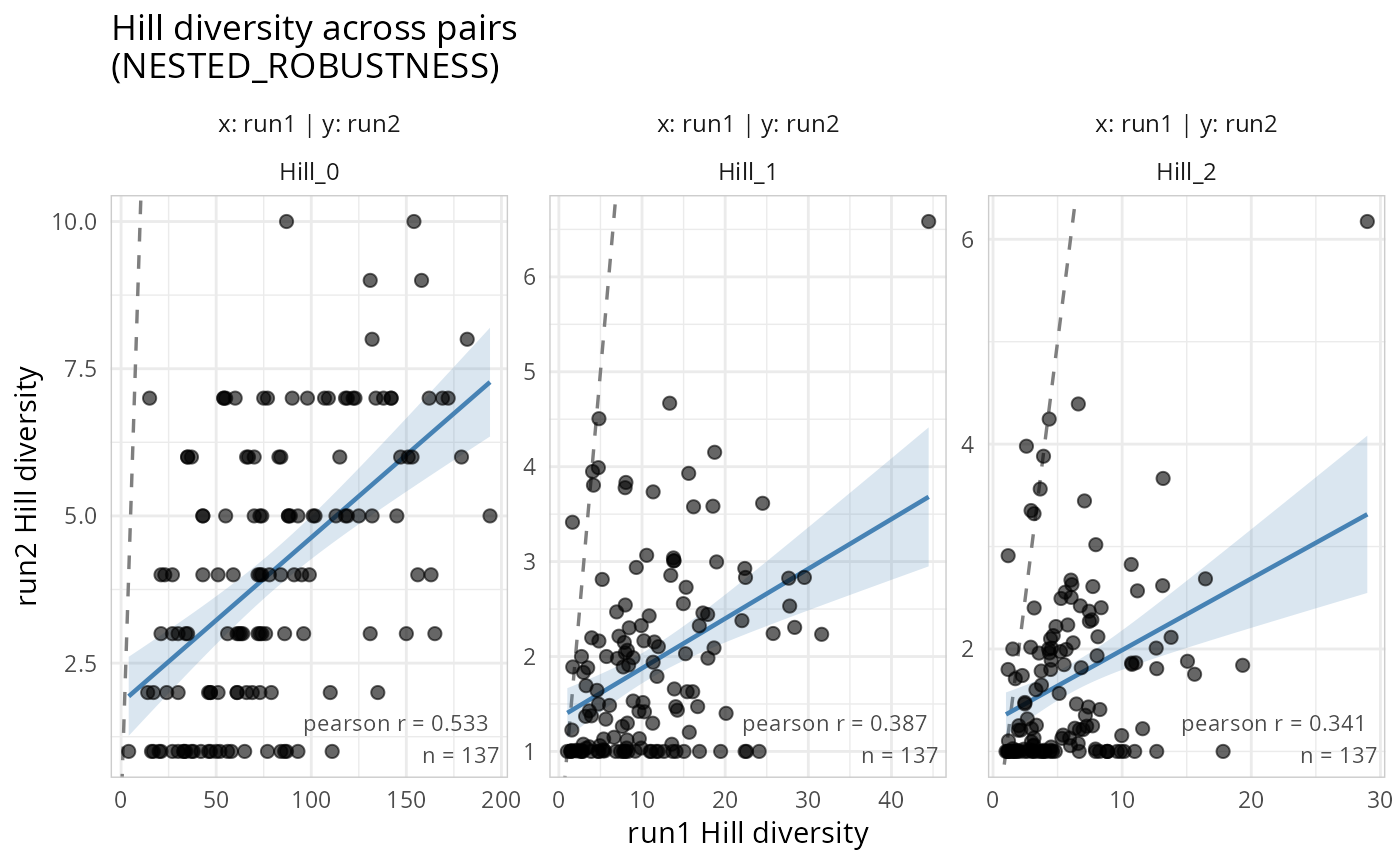

gg_hill_lpq(lpq)
#> Samples differ across phyloseq objects. Using 137 common samples.
#> Taxa are now in columns.

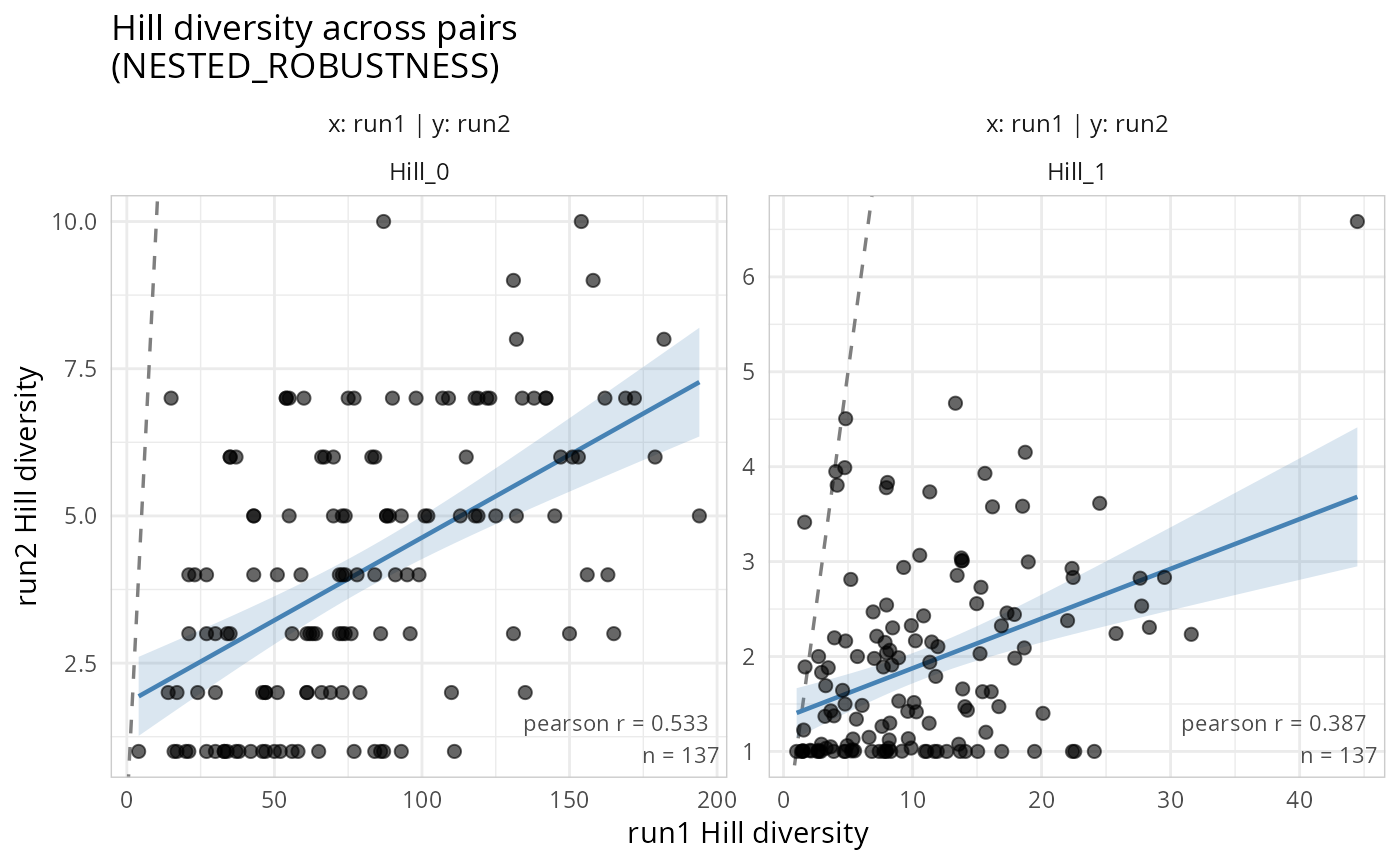

gg_hill_lpq(lpq, hill_scales = c(0, 1))
#> Samples differ across phyloseq objects. Using 137 common samples.
#> Taxa are now in columns.

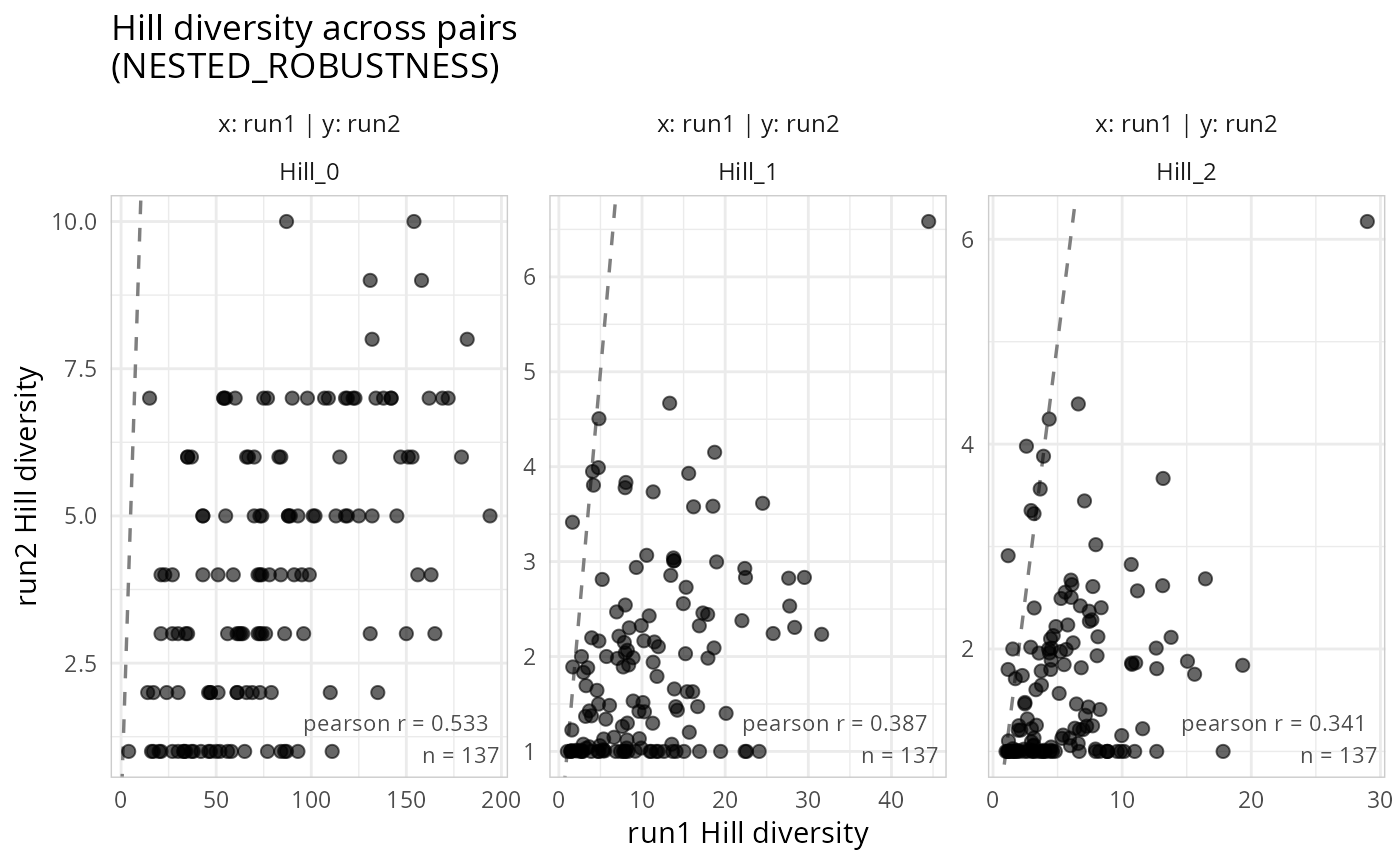

gg_hill_lpq(lpq, add_smooth = FALSE, add_1to1 = TRUE)
#> Samples differ across phyloseq objects. Using 137 common samples.
#> Taxa are now in columns.
