Visualize a targets pipeline as a resource-annotated network

Source: R/ga_targets_network.R
ga_targets_network.Rd

lifecycle-experimental

Draw the dependency graph of a targets pipeline with ggnetwork, encoding the per-target computational cost as visual aesthetics: node size and color map to a resource metric (runtime in seconds or output size in bytes) and each edge width maps to the runtime of its downstream target. This gives a quick, at-a-glance picture of where a pipeline spends its time and storage, complementing the aggregated figures of ga_targets().

The per-target metrics (seconds, bytes) are taken directly from targets::tar_network(), so no separate tar_meta() call is needed.

Usage

ga_targets_network(
  store = targets::tar_config_get("store"),
  script = targets::tar_config_get("script"),
  tar_network_raw = NULL,
  size_by = "seconds",
  color_by = "bytes",
  layout = "fruchtermanreingold",
  label = TRUE,
  arrow_gap = 0.02,
  ...
)

Arguments

store

(character, default targets::tar_config_get("store")) Path to the targets data store. See ?targets::tar_network().

script

(character, default targets::tar_config_get("script")) Path to the target script file (e.g. _targets.R). Required by targets::tar_network() to build the pipeline graph. See ?targets::tar_network().

tar_network_raw

(optional list) A precomputed targets::tar_network() result (a list with $vertices and $edges). When supplied, store is ignored. Useful for tests, custom analyses, or when the pipeline metadata is already loaded.

size_by

(character, default "seconds") Vertex attribute mapped to node size. One of "seconds" (runtime) or "bytes" (output size).

color_by

(character, default "bytes") Vertex attribute mapped to node color. One of "seconds", "bytes" or "status" (the target build status).

layout

(character, default "fruchtermanreingold") A network layout name passed to ggnetwork::ggnetwork().

label

(logical, default TRUE) Draw the target names next to the nodes.

arrow_gap

(numeric, default 0.02) Gap left between the arrow head and the target node, passed to ggnetwork::ggnetwork().

...

Additional arguments passed on to ggnetwork::ggnetwork().

Value

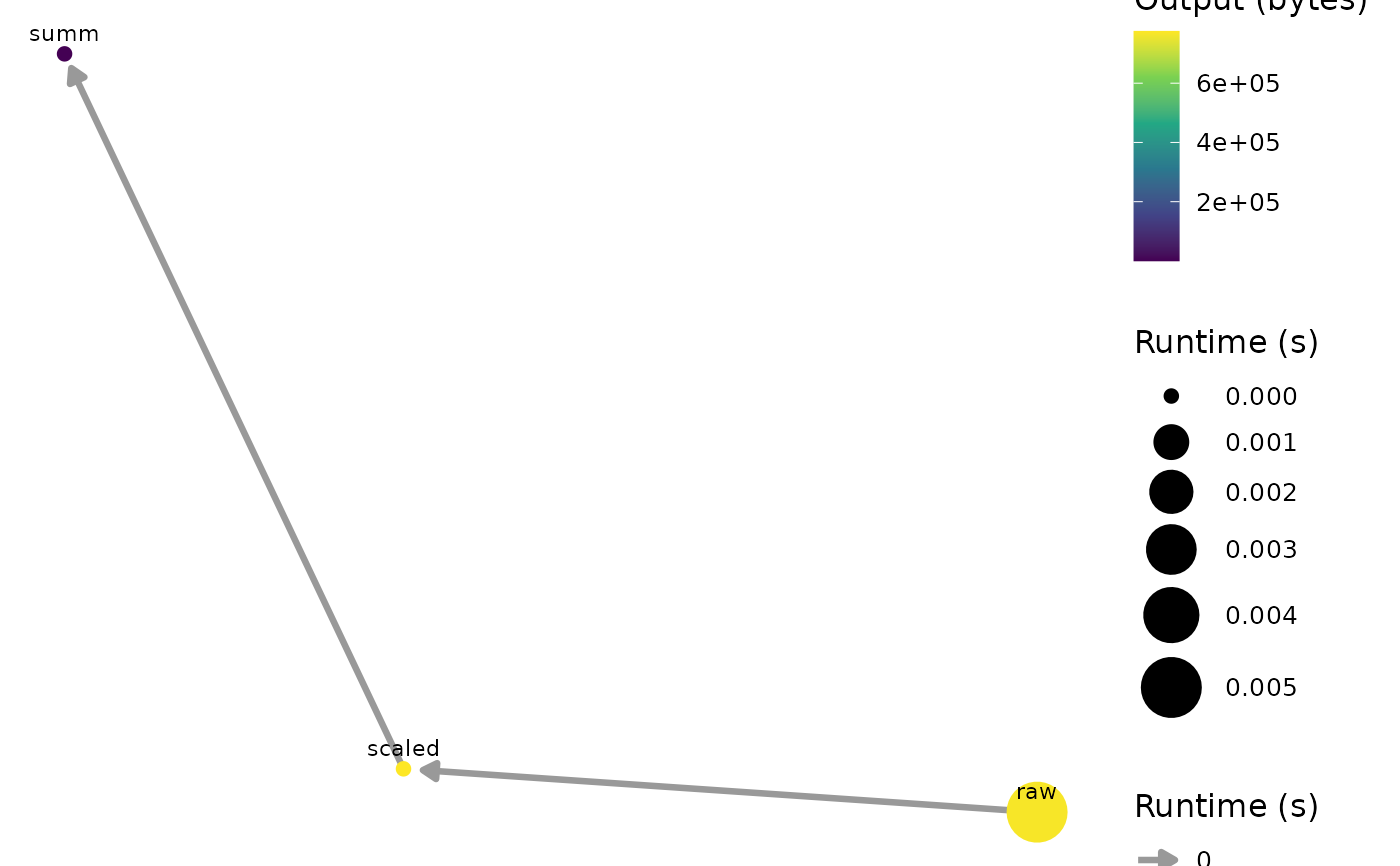

A ggplot object showing the pipeline network.

See also

ga_targets(), ga_autometric_plot()

Author

Adrien Taudière

Examples

targets::tar_dir({ # tar_dir() runs code from a temp dir for CRAN.
  targets::tar_script(
    {
      list(
        targets::tar_target(raw, rnorm(1e5)),
        targets::tar_target(scaled, raw * 2),
        targets::tar_target(summ, mean(scaled))
      )
    },
    ask = FALSE
  )
  targets::tar_make(reporter = "silent")
  net <- targets::tar_network(targets_only = TRUE)
  ga_targets_network(tar_network_raw = net)
})
