Hill diversity accumulation curve for a phyloseq object (default: q = 1)

Computes Hill diversity accumulation curves from a phyloseq object and returns a ggplot2 object.

Two types of curves are available:

type = "individual" (default): individual-based (sequence-based) rarefaction/extrapolation curves via divent::accum_hill(), with one curve per sample (or per merged group).
type = "sample": sample-based accumulation curve. Samples are pooled incrementally (over random permutations) and Hill diversity is computed at each step using divent::div_hill(). The x-axis represents the number of samples.

Usage

hill_acc_pq(
  physeq,
  q = 1,
  type = c("individual", "sample"),
  merge_sample_by = NULL,
  n_permutations = 100,
  conf_level = 0.95,
  ...
)

Arguments

physeq

(required) a phyloseq-class object obtained using the phyloseq package.

q

(numeric, default 1) Hill diversity order. Default is 1 (exponential of Shannon entropy), recommended for its robustness against rare and potentially erroneous sequences (Alberdi & Gilbert, 2019; Calderón-Sanou et al., 2019).

type

(character) Type of accumulation curve. Either "individual" (sequence-based, one curve per sample) or "sample" (sample-based, one curve for the whole dataset or per group).

merge_sample_by

(character or NULL) Variable name in sam_data used to group samples. Behaviour differs by type:

type = "individual": samples are merged before computing curves (one curve per merged group, using merge_samples2()).
type = "sample": samples are split by group and one accumulation curve is drawn per group, all on the same plot.

n_permutations

(integer, default 100) Number of random sample orderings used to compute the mean and confidence envelope for sample-based accumulation. Ignored when type = "individual".

conf_level

(numeric, default 0.95) Confidence level for the envelope around sample-based accumulation curves. Ignored when type = "individual".

...

Additional arguments passed to divent::accum_hill() (when type = "individual") or divent::div_hill() (when type = "sample").

Value

A ggplot2 object.

References

Alberdi, A., & Gilbert, M. T. P. (2019). A guide to the application of Hill numbers to DNA-based diversity analyses. Molecular Ecology Resources. doi:10.1111/1755-0998.13014

Calderón-Sanou, I., Münkemüller, T., Boyer, F., Zinger, L., & Thuiller, W. (2019). From environmental DNA sequences to ecological conclusions: How strong is the influence of methodological choices? Journal of Biogeography, 47. doi:10.1111/jbi.13681

Examples

# \donttest{

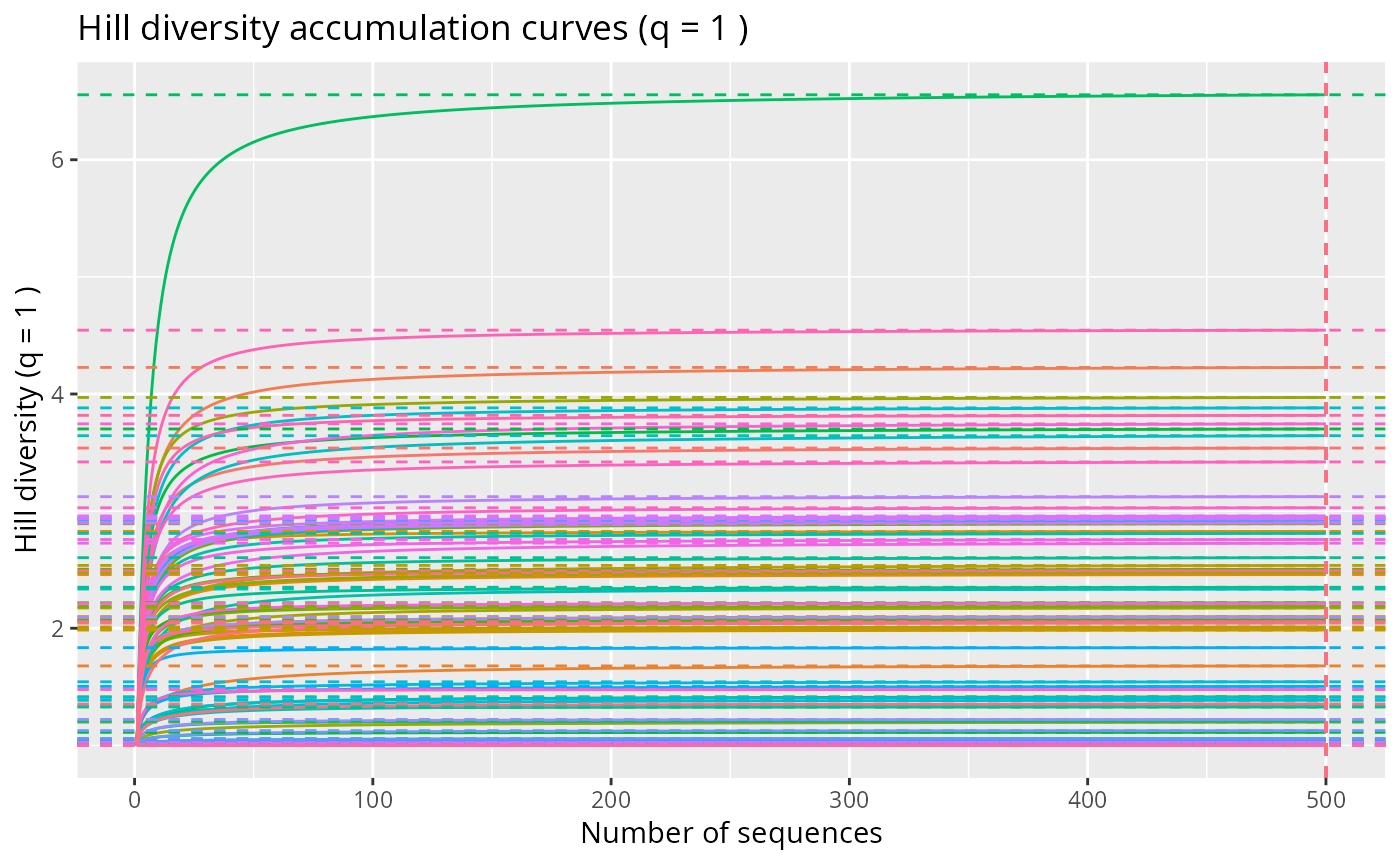

 # Individual (sequence-based) accumulation curves
  hill_acc_pq(rarefy_even_depth (data_fungi_mini, sample.size = 500)) + no_legend()
#> You set `rngseed` to FALSE. Make sure you've set & recorded
#>  the random seed of your session for reproducibility.
#> See `?set.seed`
#> ...
#> 58 samples removedbecause they contained fewer reads than `sample.size`.
#> Up to first five removed samples are:
#> A15-004_S3_MERGED.fastq.gzAC29033_S8_MERGED.fastq.gzAD26-005-B_S9_MERGED.fastq.gzB18-006-B_S19_MERGED.fastq.gzBG7-010-H_S31_MERGED.fastq.gz
#> ...
#> Taxa are now in columns.
#> Computing individual-based accumulation curves ■■■                             …
#> Computing individual-based accumulation curves ■■■■■■                          …
#> Computing individual-based accumulation curves ■■■■■■■                         …
#> Computing individual-based accumulation curves ■■■■■■■■■                       …
#> Computing individual-based accumulation curves ■■■■■■■■■■                      …
#> Computing individual-based accumulation curves ■■■■■■■■■■■■                    …
#> Computing individual-based accumulation curves ■■■■■■■■■■■■■                   …
#> Computing individual-based accumulation curves ■■■■■■■■■■■■■■■                 …
#> Computing individual-based accumulation curves ■■■■■■■■■■■■■■■■                …
#> Computing individual-based accumulation curves ■■■■■■■■■■■■■■■■■               …
#> Computing individual-based accumulation curves ■■■■■■■■■■■■■■■■■■■             …
#> Computing individual-based accumulation curves ■■■■■■■■■■■■■■■■■■■■■           …
#> Computing individual-based accumulation curves ■■■■■■■■■■■■■■■■■■■■■■■         …
#> Computing individual-based accumulation curves ■■■■■■■■■■■■■■■■■■■■■■■■■       …
#> Computing individual-based accumulation curves ■■■■■■■■■■■■■■■■■■■■■■■■■■■     …
#> Computing individual-based accumulation curves ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■   …
#> Computing individual-based accumulation curves ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ …

  hill_acc_pq(rarefy_even_depth(data_fungi_mini, sample.size = 500),
    n_permutations = 5,
    merge_sample_by = "Height"
  )
#> You set `rngseed` to FALSE. Make sure you've set & recorded
#>  the random seed of your session for reproducibility.
#> See `?set.seed`
#> ...
#> 58 samples removedbecause they contained fewer reads than `sample.size`.
#> Up to first five removed samples are:
#> A15-004_S3_MERGED.fastq.gzAC29033_S8_MERGED.fastq.gzAD26-005-B_S9_MERGED.fastq.gzB18-006-B_S19_MERGED.fastq.gzBG7-010-H_S31_MERGED.fastq.gz
#> ...
#> Warning: `group` has missing values; corresponding samples will be dropped
#> Taxa are now in columns.
#> Computing individual-based accumulation curves ■■■■■■■■■■■                     …
#> Computing individual-based accumulation curves ■■■■■■■■■■■■■■■■■■■■■           …

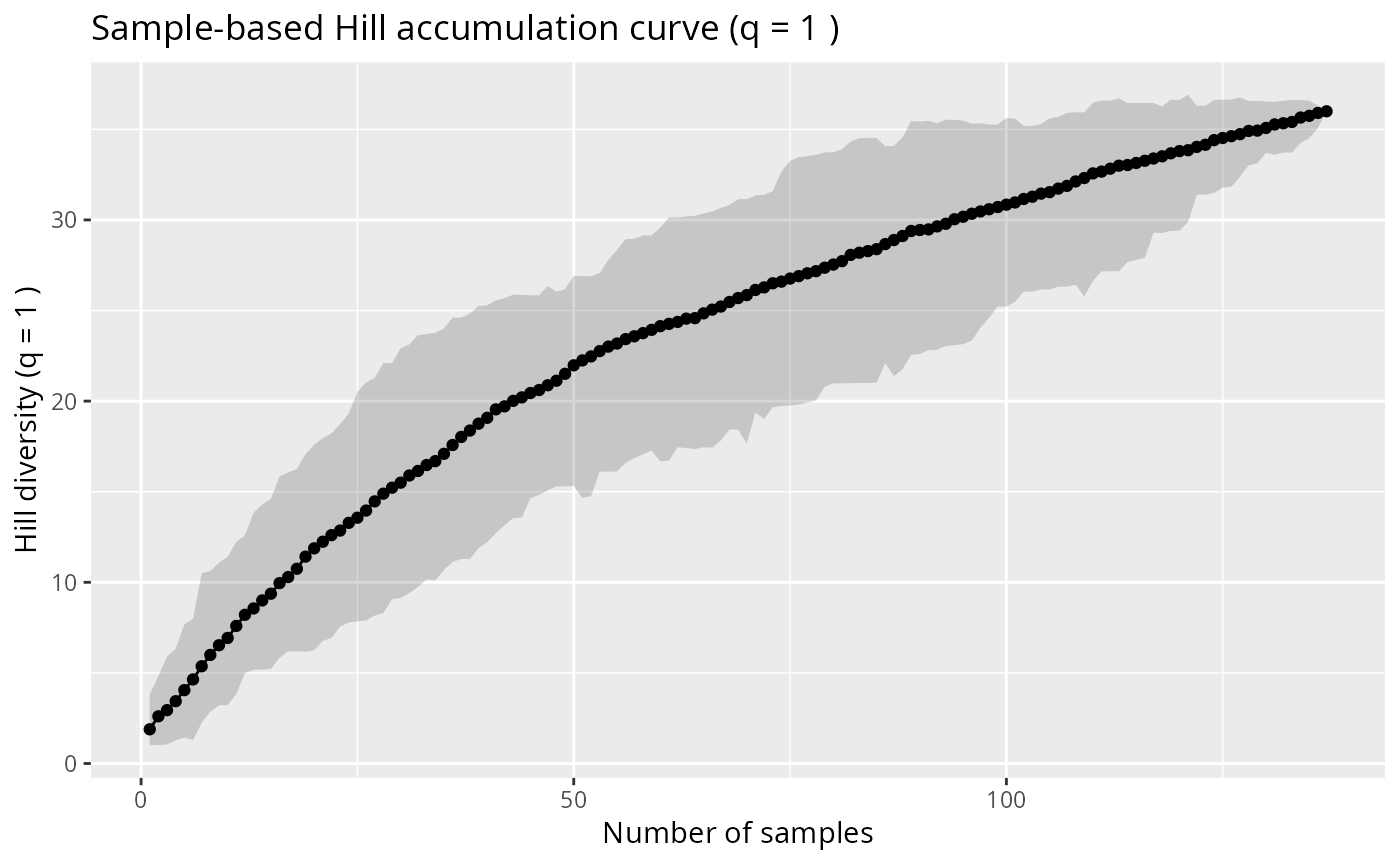

 # Sample-based accumulation curve
  hill_acc_pq(data_fungi_mini, type = "sample", n_permutations = 50)
#> Taxa are now in columns.
#> Computing sample-based accumulation curves ■■■■■■                            18…
#> Computing sample-based accumulation curves ■■■■■■■■■■■■■■■■■■■■■■■           72…
#> Computing sample-based accumulation curves ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■    98…

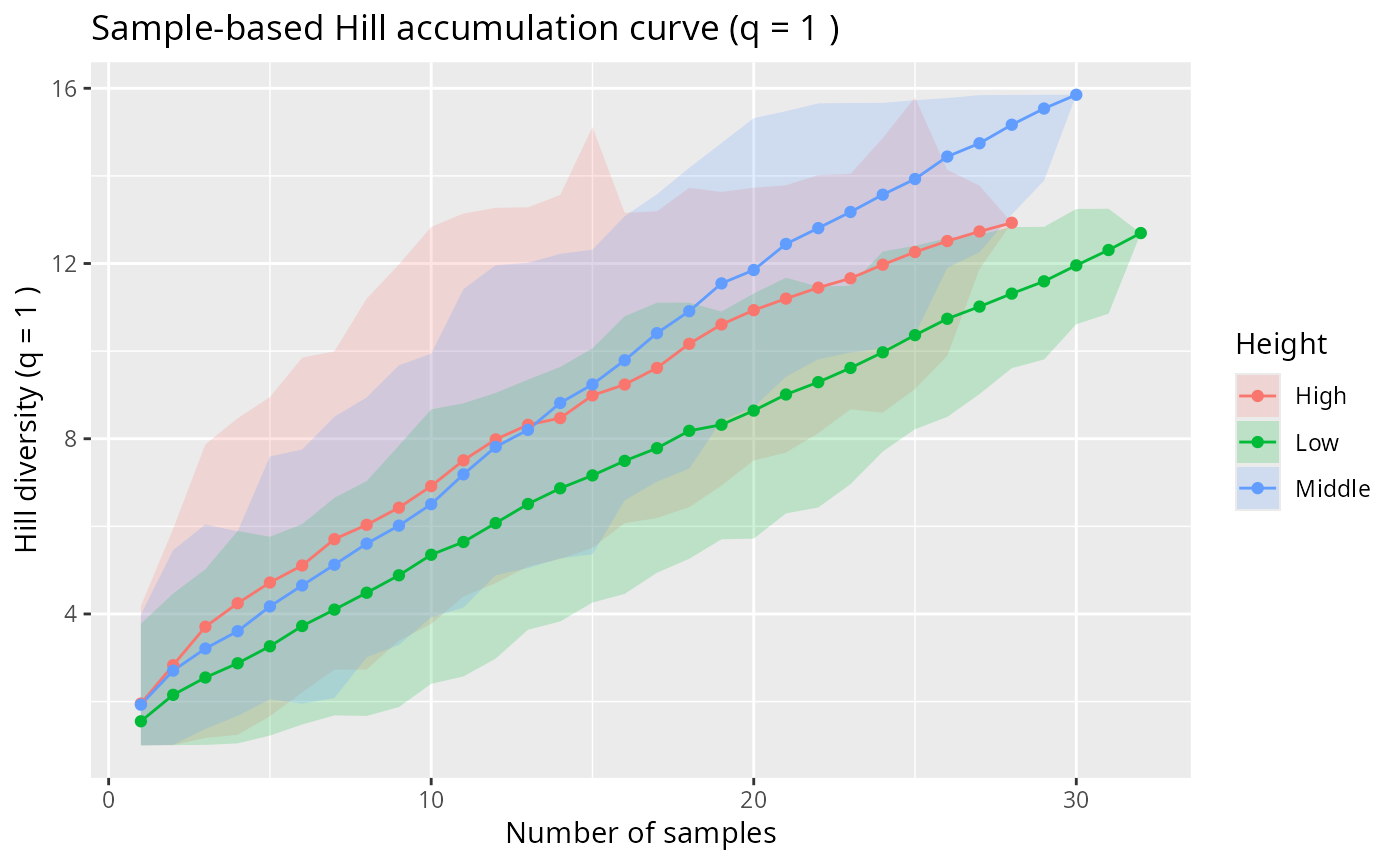

  hill_acc_pq(data_fungi_mini, type = "sample", merge_sample_by = "Height")
#> Taxa are now in columns.
#> Computing sample-based accumulation curves ■■■■■■■■■■■■■■■                   48…
#> Computing sample-based accumulation curves ■■■■■■■■■■■■■■■■■■■■■■■           73…
#> Computing sample-based accumulation curves ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■     93…

# }
